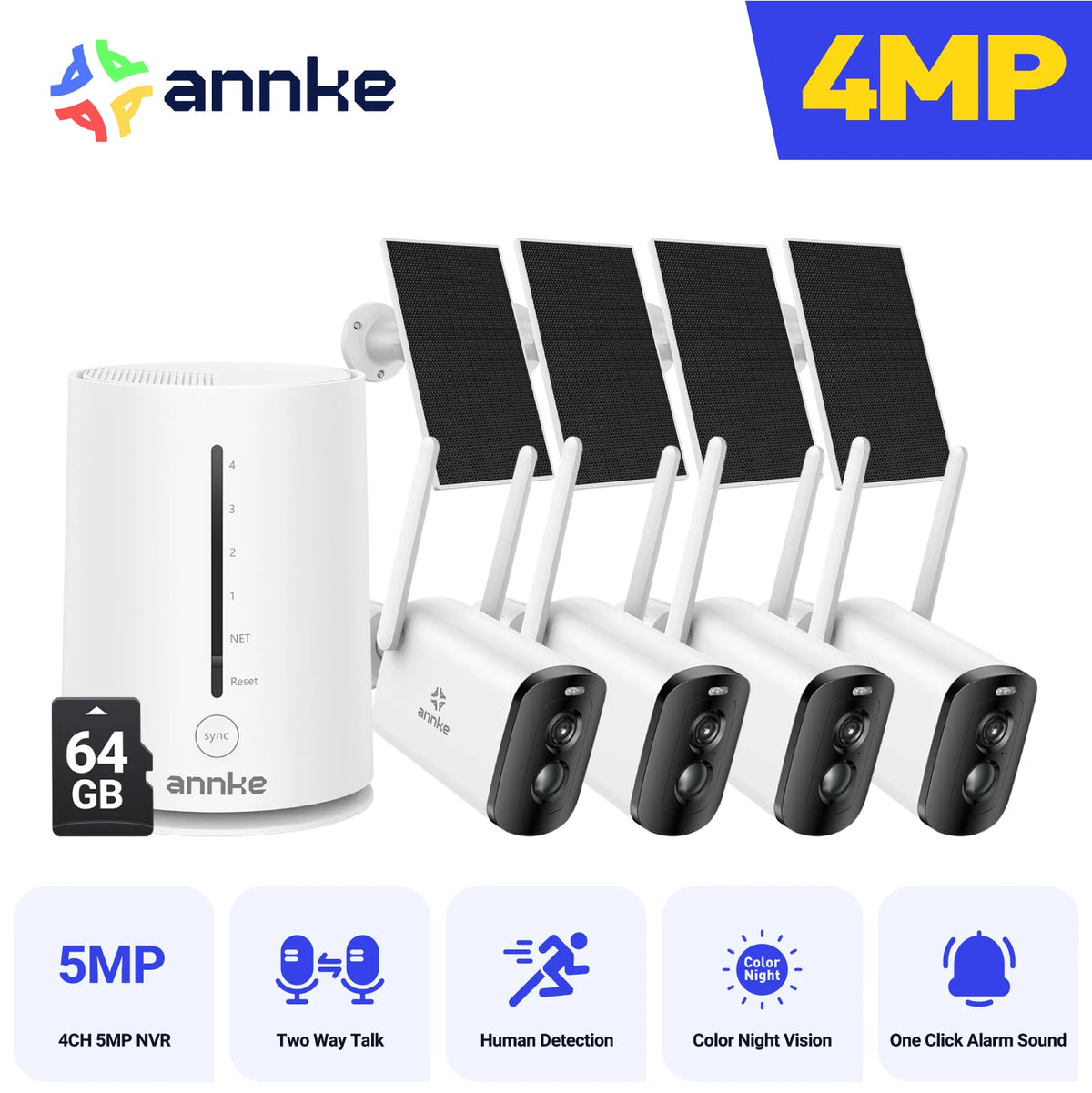

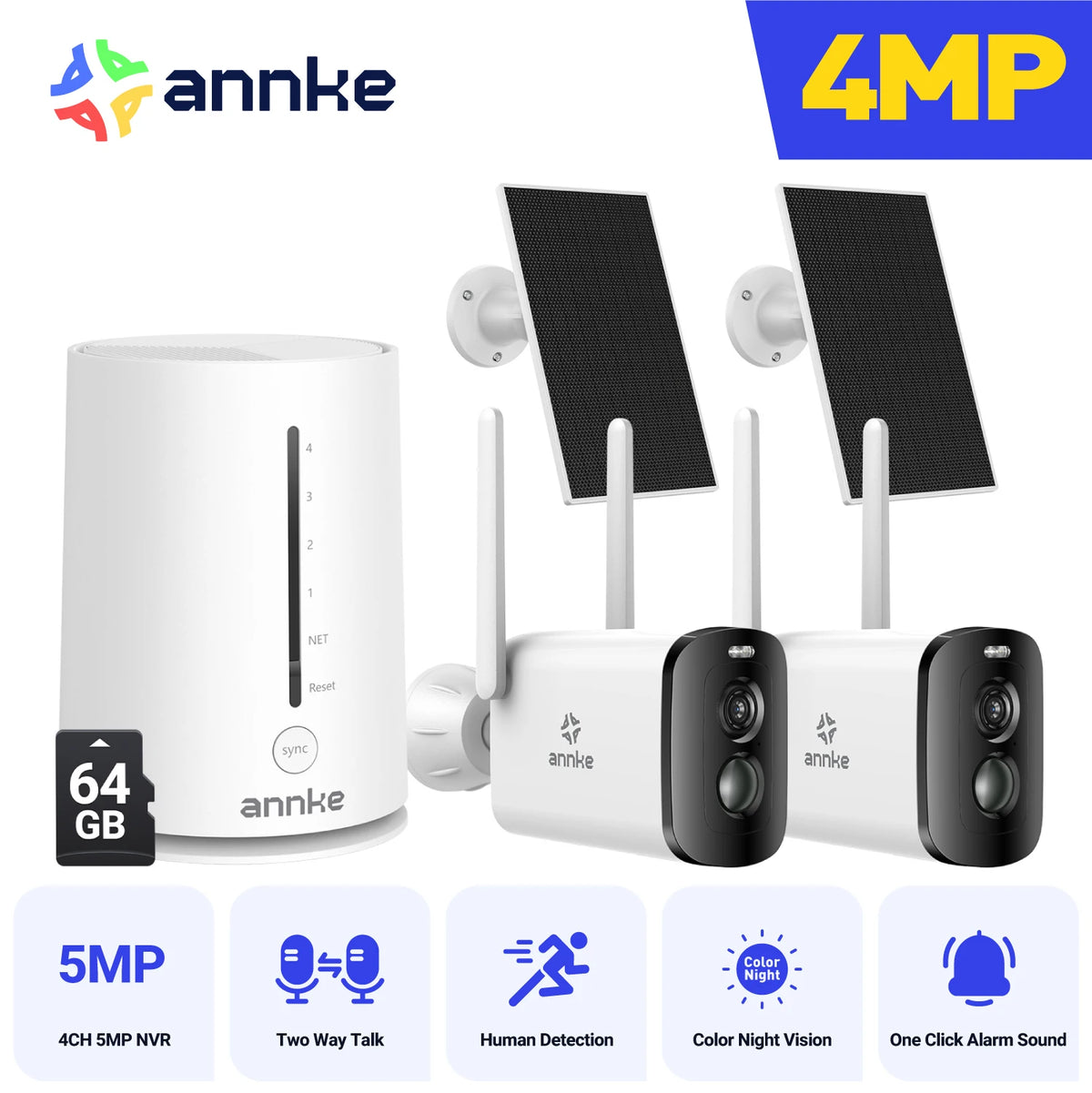

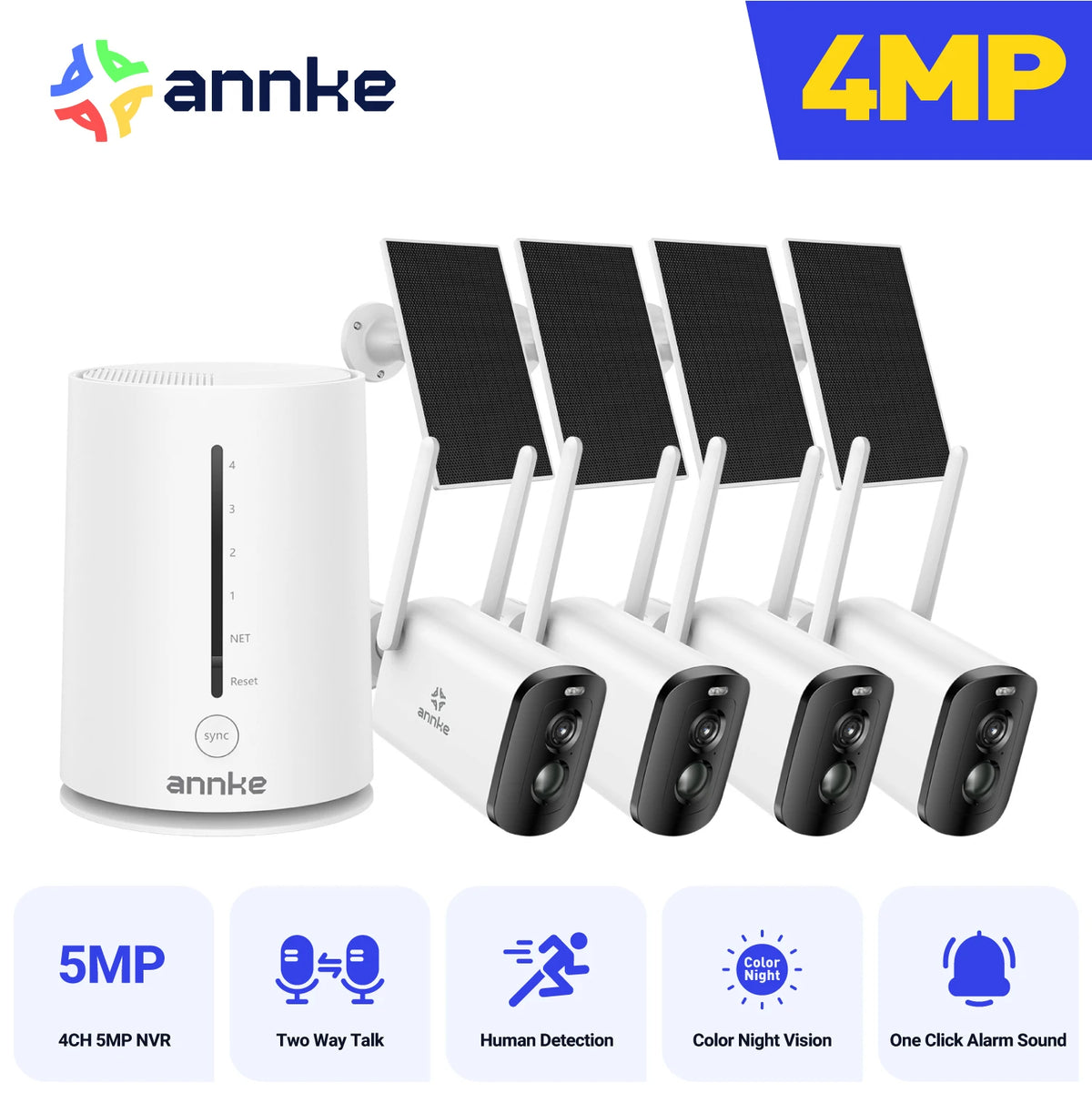

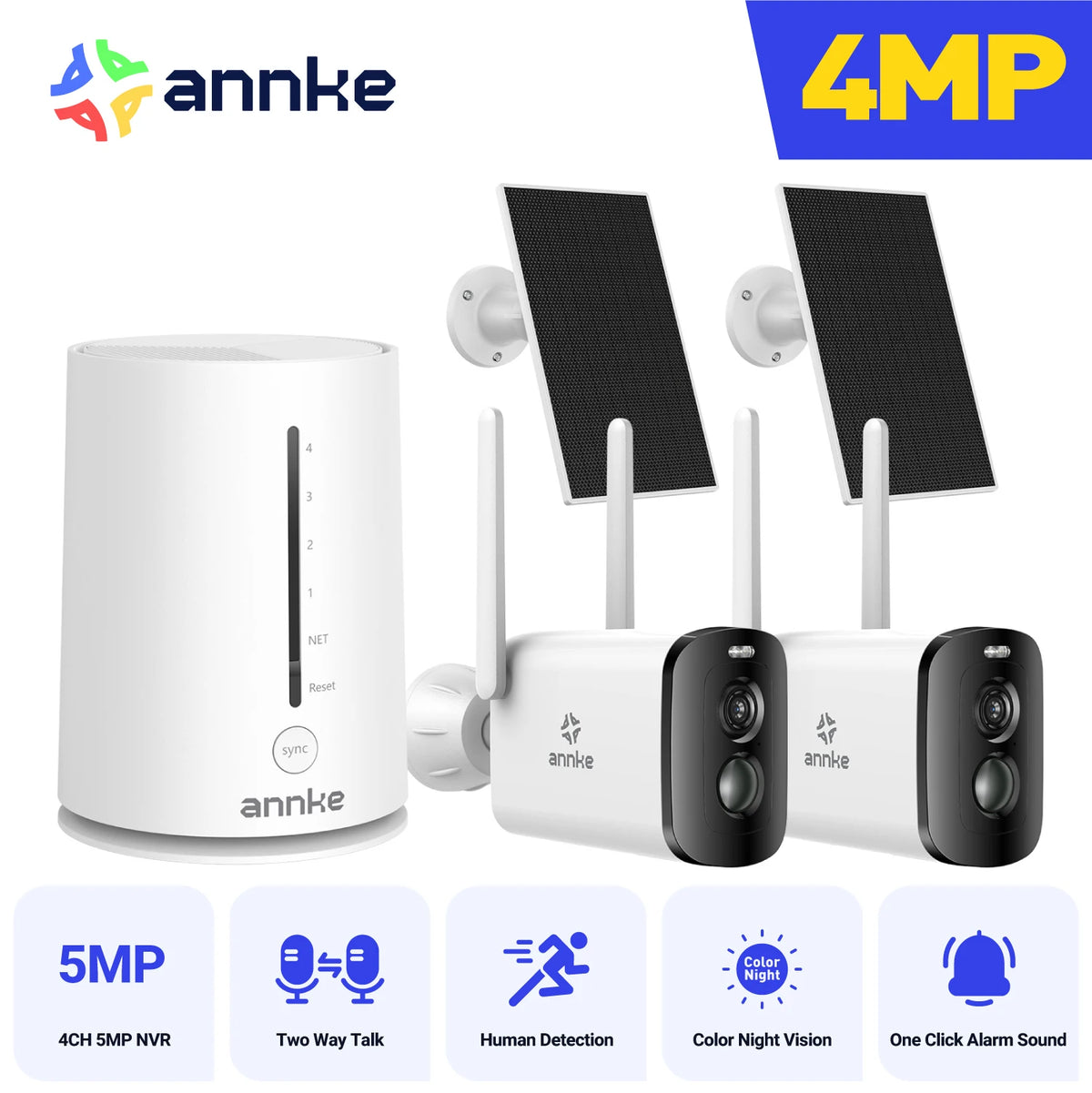

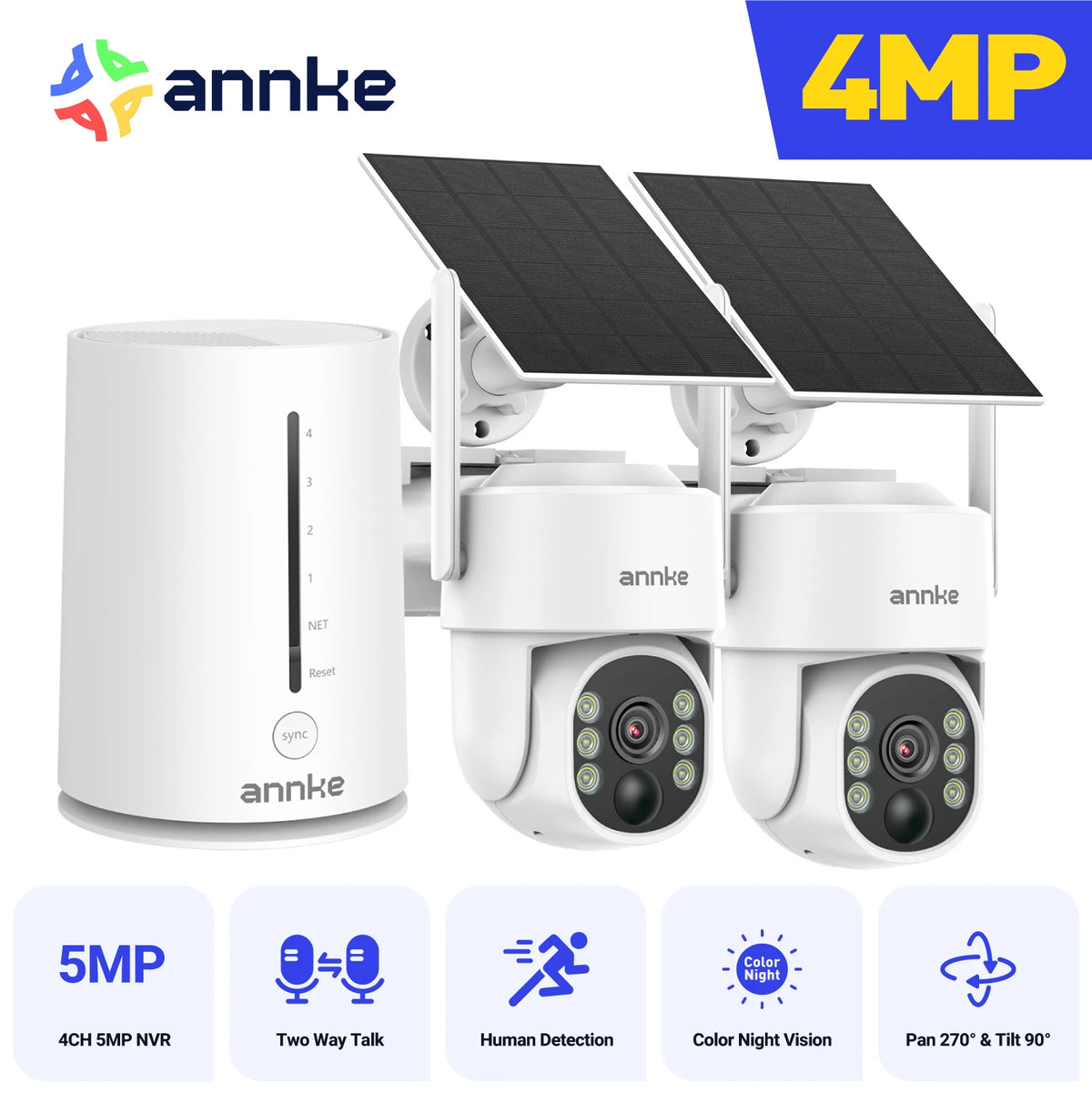

ANNKE 4MP Solar Wireless Security Camera System With NVR
ANNKE 4MP Solar Wireless Security Camera System With NVR
Couldn't load pickup availability
Keep an eye on your property with a solar-powered, wire-free camera system that records clear 4MP video to its NVR.

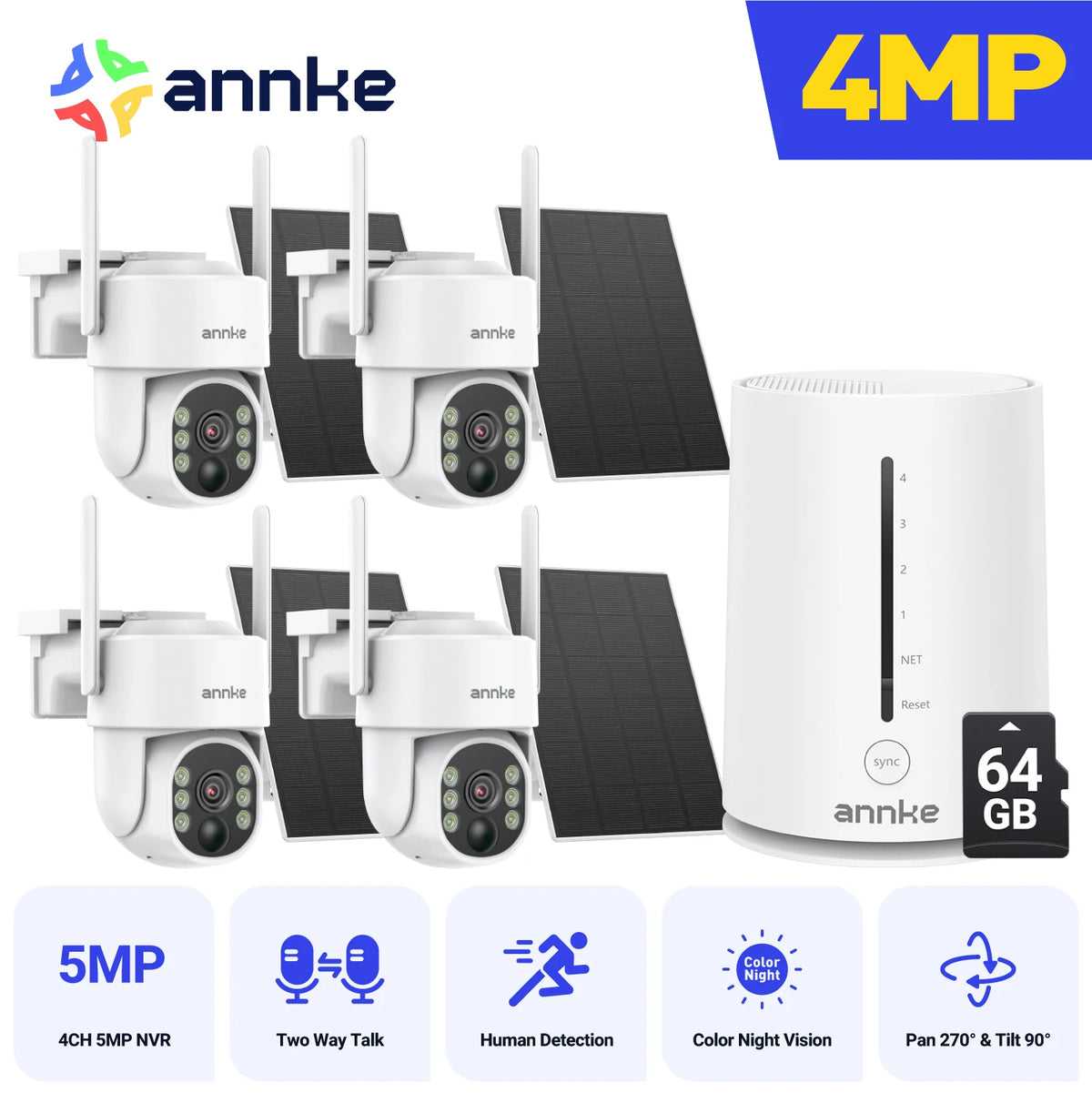

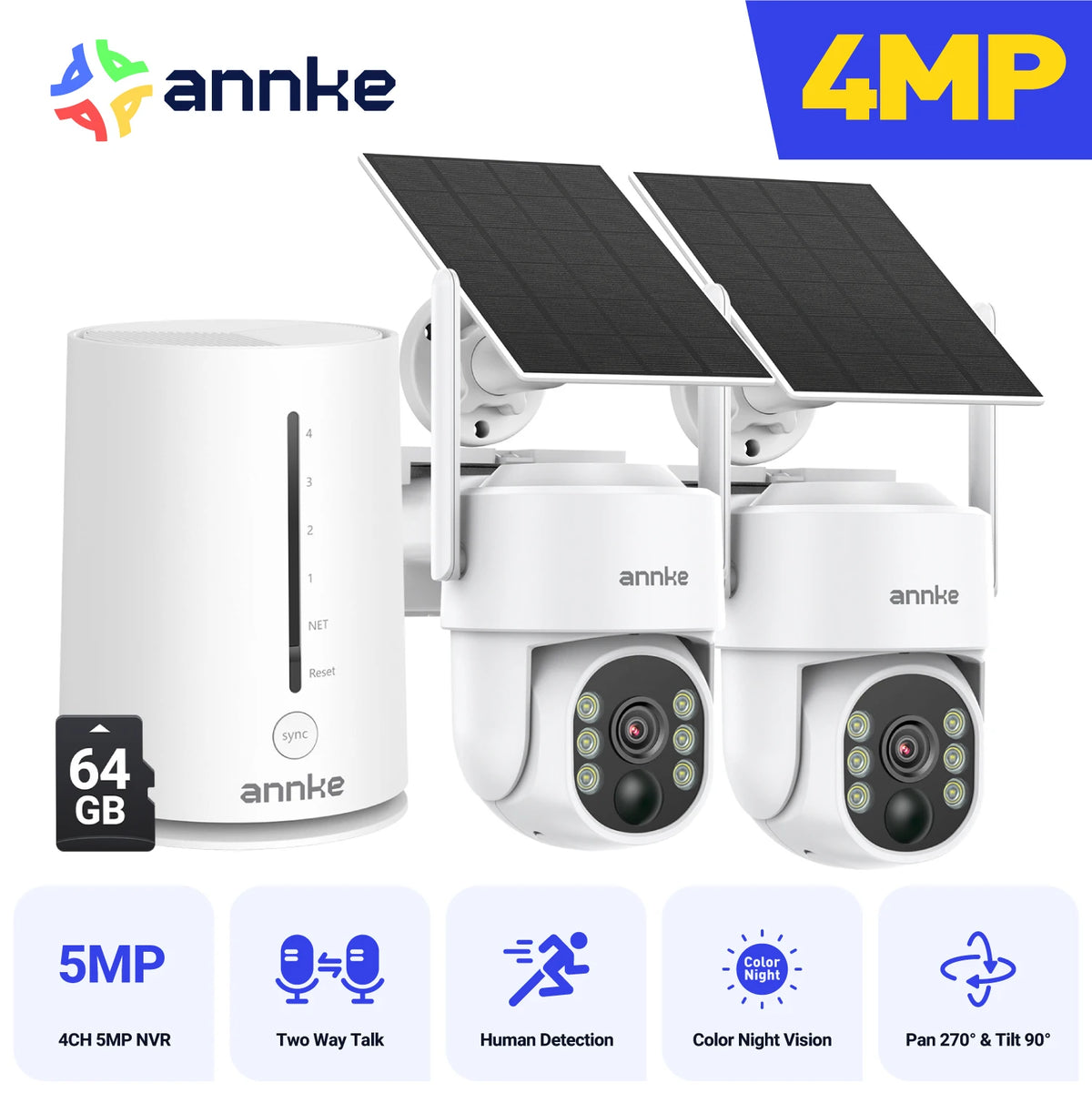

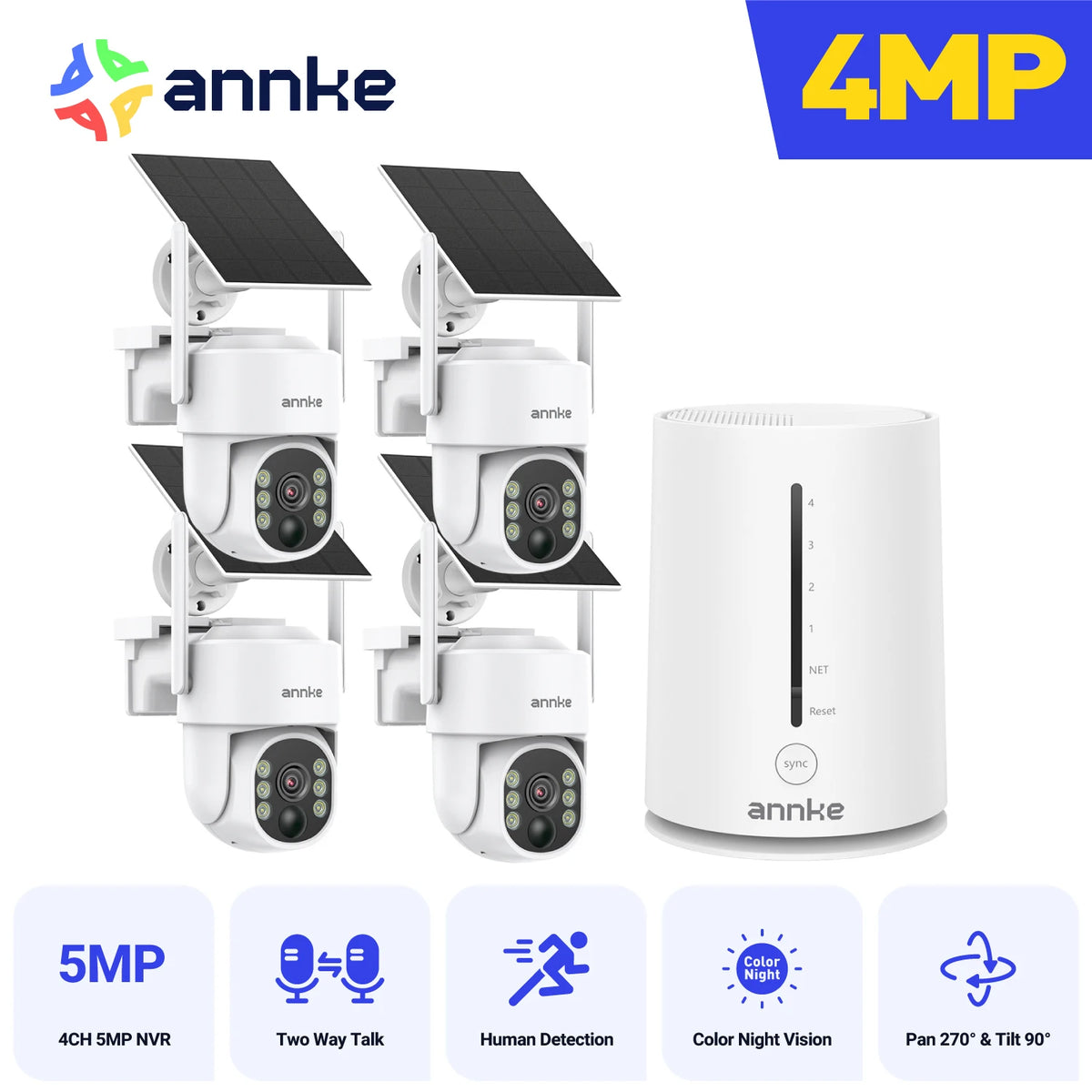

- Flexible coverage: Choose 2 or 4 cameras, then adjust each view remotely with 270° horizontal and 90° vertical pan and tilt.
- Day and night detail: View 2560 × 1440 footage, with spotlight color night vision or infrared vision up to 15 metres.
- Useful alerts and talk: Human detection sends app notifications, while two-way audio lets you speak through the camera.

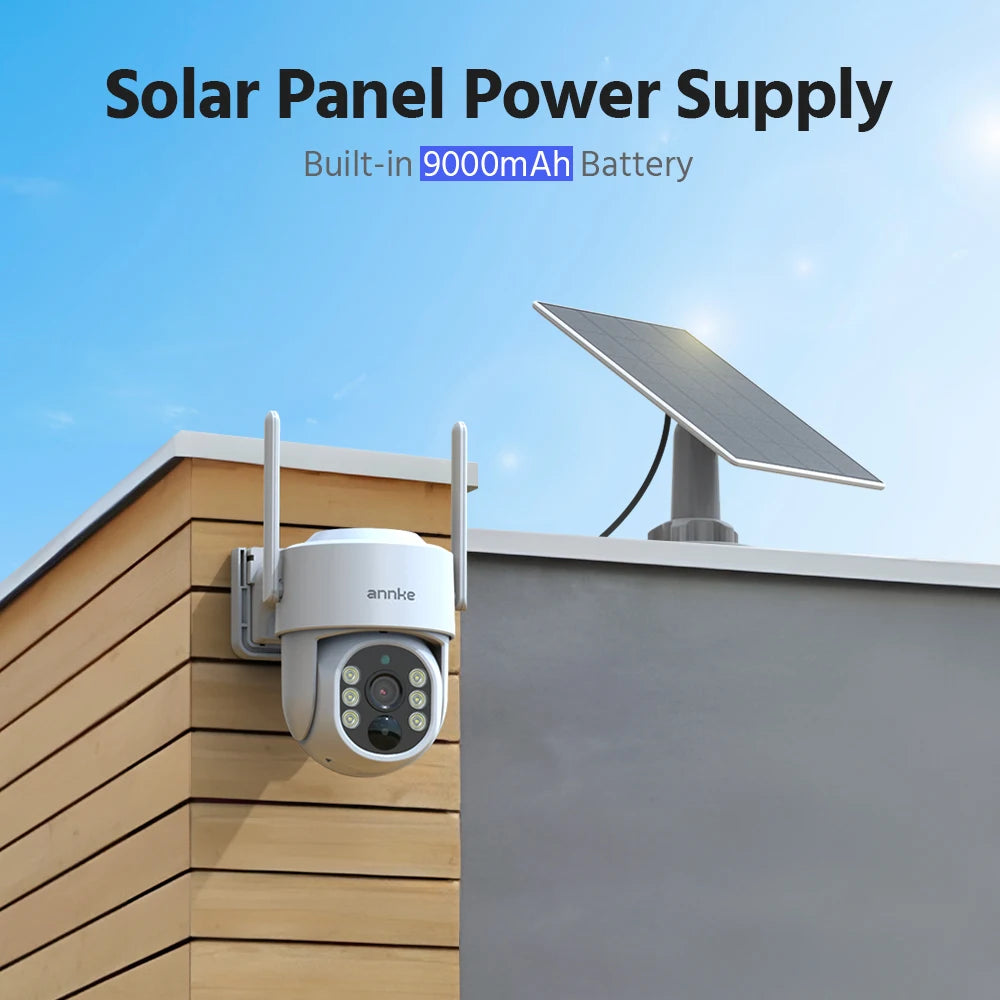

- Wireless recording: Solar panels, built-in batteries and dual-band Wi-Fi simplify placement; the 4-channel NVR supports microSD storage up to 512GB.
N54WHF | ||
Video Compression |
H.264+ |
|
IP Video Input |
4CH Wireless |
|
IP Video Output |
APP，PC Client |
|
Audio Output |
Speaker |
|
Max Recording Resolution |
Up to 5M(2880x1620) |
|
Max Playback Resolution |
Up to 5M(2880x1620) |
|
Max Playback Channel |
1CH |
|
Storage |
Micro SD Card |
Up to 512GB |
|
Wireless antenna |
Built-in，IEEE802.11b/g/n/ac/ax |
Network Interface |
Wireless+RJ45(10/100M) |
|
Wireless Standards |
2.4G&5.8G dual-band，IEEE 802.11.ax |
|
General |
Housing |
Plastic |
Operating Power |
DC5V |
|
Power Consumption |
5W |
|
Working Temperature |
32 °F ~ 104 °F /0 °C ~ 40 °C |
|
Dimensions(W x H x D) |
95×95×130mm |
|
Weight |
240g |
|
IP Camera 9000mAh battery I81BM | ||
Camera |
Video Resolution |
4MP(2560x1440@15fps) |
Image sensor |
1/3.2" Progressive Scan CMOS |
|
Video compression |
H.264+ |
|
Audio Compression |
G.711A |
|
Audio Intput |
Microphone |
|
Audio Output |
Speaker |
|
Lens |
4mm |
|
Angle of View |
70° |
|
Number of Infrared/Color LEDs |
6 |
|
Infrared and full color Distance |
Infrared 15m/Color 8m |
|
Built-in battery |
3.7V/9000mAh 2pcs 21700 |
|
PTZ control |
Horizontal 270°, Vertical 90° |
|
PIR Sensor |
10 meters |
|
Wireless antenna |
1 Ports(2.4G&5.8G dual-band，IEEE 802.11.ax) |
|
General |
Housing |
Plastic |
Operating Power |
DC5V，Type-C Interface |
|
Operating Temperature |
-4 °F – 140 °F /-20 °C – 60 °C |
|
Mount Option |
Wall mount |
|
Indoor/Outdoor |
Indoor/Outdoor |
|
Weatherproof Rating |
IP65 |
|
Dimension (L x W x H) |
||
Weight |
||
Camera |
Sensor |
1/3" CMOS |
Focal Length |
4 mm |
|
Aperture |
F2.0 |
|
Optical Field of View |
102.9° diagonal, 86.4° horizontal, 46.1° vertical |
|
Minimum Illumination |
0.1 lux |
|
IR distance |
Night visibility up to 15m, 10M Color Nightvision |
|
Audio |
Input |
Built-in microphone |
Output |
Built-in speaker |
|
Two-way Audio |
Full duplex |
|
Audio Compressing |
AAC |
|
Video |
Video Compressing |
H.264, H.265 |
Lighting Frequency |
50 Hz, 60 Hz |
|
Frame Rate |
15 fps |
|
Maximum Resolution |
2560 × 1440 |
|
Light Source For Night Vision |
White light or infrared LED switchable |
|
Network |
Wireless Standard |
2.4 GHz Wi-Fi (IEEE 802.11 b/g/n) |
Protocols Supported |
TCP/IP, UDP/IP, DHCP, RTMP, MUTP |
|
IP Address Type |
Dynamic IP address |
|
Recording |
Recording Method |
Alarm triggered recording, and manual recording |
Video Storage |
Cloud storage, local Micro SD card (up to 128 GB), and mobile phone memory |
|
Function |
AI Function |
Human detection |
Wake-up Method |
PIR body induction wake-up and remote wake-up |
|
Alarm Notification |
Alarm push by mobile app, white LED flashing and alarm sound warning |
|
Indicator |
RGB tri-color LED |
|
Battery |
Capacity |
5200 mAh |
Removability |
Unremovable |
|
Charging Voltage |
5 V ±5% |
|
Charing Current |
1.5 A |
|
Protection |
Over-charge, over-discharge, over-current, short circuit and charging protection at high and low temperature |
|
Power Consumption |
Standby |
1.48 mW |
Daytime Working |
0.95 W |
|
Nighttime Working |
1.54W |
|
Interface |
Power |
TYPE-C |
Storage |
Micro SD card |
|
Key |
Power key and reset key |
|
Installation |
Installation Method |
Wall mount, ceiling mount,desktop |
Bracket Type |
1/4'' universal screw hole |
|
Environment |
Dustproof and Waterproof |
IP65 |
Operating Temperature |
-10℃~ 45℃ |
|
Storage Temperature |
-20℃~ 60℃ |
|
Prodoct Dimension |
Dimension |
54(L)mm x 118(W)mm x 81mm(H) (without bracket) |
Bare Weight |
330 g |
|
Material |
ABS + PC |
|
Color |
White |
